RA6M1 Feather SoM

RA6M1 Feather SoM

High performance System on Module featuring the Arm® Cortex®-M4 CPU core with a maximum operating frequency of 120 MHz, 512 KB Flash Memory, and 96 KB SRAM in a compact Feather form factor.

Ideal for high-performance applications requiring powerful processing capabilities for complex IoT devices and industrial applications.

Schematic, Layout, Code samples and best practices

Buy - MOQ 100 pcs - Lead time 8 weeks from order.

Renesas Electronics Corporation is a global leader in microcontrollers, analog, power, and System on Chips.

We're part of the Preferred Partner Program and we have been relying on their MCUs and other electronic components for many of our projects.

The RA6M1 is designed for high-performance applications, featuring the Arm® Cortex®-M4 CPU core with a maximum operating frequency of 120 MHz. It's ideal for complex IoT devices and industrial applications requiring powerful processing capabilities and advanced peripherals.

The Feather SoM incorporates the classic Feather features: GPIOs (analog and digital), I2C and SPI communication pins, UART pins, a LiPo battery power plug, and the USB programming port. The SoM also features a USB Type-C for powering the board and for USB debug upload.

RA6M1 Feather SoM
Feather SoM Carrier Board
Feather format

Feather format

Feather is a flexible and powerful family of microcontroller main-boards (Feathers) and daughter-boards (Wings) with a wide range of capabilities. They can be plugged into a breadboard for quick prototyping, have built-in battery connectors for your on-the-go projects, and most have built-in lipoly chargers.
Check wing extensions here!

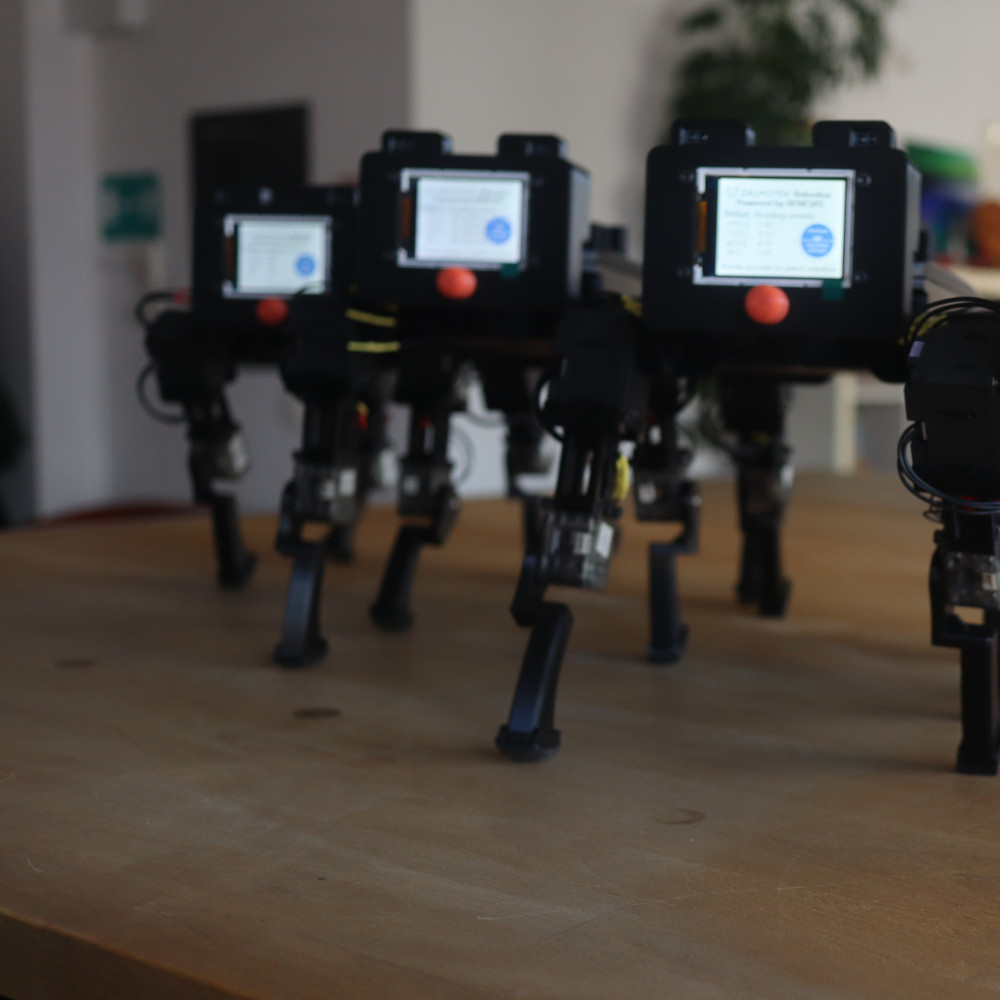

Robotics Control

Proposed application

Advanced robotics control system for complex tasks and real-time data processing, utilizing the RA6M1 Feather SoM's high performance and powerful processing capabilities.

Feather SoM Carrier Board

Carrier board

Our Feather SoM Carrier Board allows the Feather SoM to expose the following interfaces via the 4 Port modules:
10BaseT/100BaseTX Ethernet port
PMOD adapter
Particle M-SoM
CAN bus port
Audio IN/OUT
