High performance System on Module featuring the powerful 64-bit RZ/A3M from Renesas with 1 GHz Arm® Cortex®-A55 CPU, integrated 2 Gbit NAND Flash memory, 128MB DDR3L-SDRAM, and MIPI-DSI display output in a compact Feather form factor.
Ideal for advanced embedded applications requiring significant processing power and display capabilities.
Availability: In development
The RZ/A3M allows you to achieve the full potential of a real-time operating system (RTOS) while leveraging the performance boost provided by the 64-bit Arm® Cortex®-A55 CPU core with a maximum operating frequency of 1 GHz. It features MIPI DSI output for display control, 2 Gbit NAND Flash memory, and built-in 128MB DDR3L-SDRAM, all conveniently packaged in a compact format.

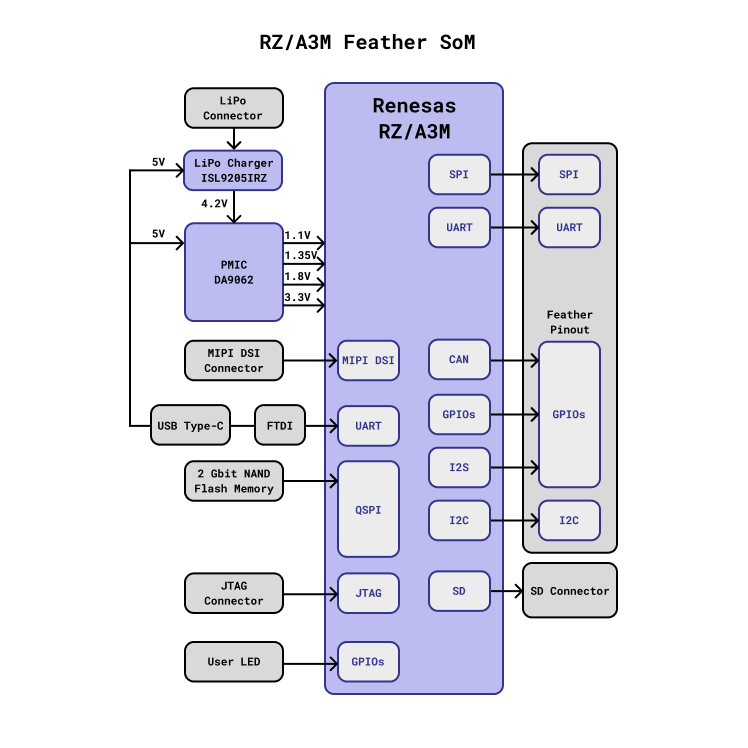

Besides the processor, the Feather SoM contains the classic Feather features: digital GPIOs, I2C and SPI communication pins, UART pins, a LiPo battery power plug, and the USB programming port. The SoM also features a USB Type-C for powering the board and for USB debug upload.
Feather format
Feather is a flexible and powerful family of microcontroller main-boards (Feathers) and daughter-boards (Wings) with a wide range of capabilities. They can be plugged into a breadboard for quick prototyping, have built-in battery connectors for your on-the-go projects, and most have built-in lipoly chargers.
Check wing extensions here!
Display interface
Our Feather SoM features a 4-lane MIPI DSI connector, supporting up to WXGA resolution (1280 x 800) at 60 fps with RGB888 color depth. It offers a maximum bandwidth of 1.5 Gbps per lane and supports the RGB666 output format, making it suitable for HMI solutions.
Carrier board
Our Feather SoM Carrier Board allows the Feather SoM to expose the following interfaces via the 4 Port modules:
10BaseT/100BaseTX Ethernet port
PMOD adapter
Particle M-SoM
CAN bus port
Audio IN/OUT
